iNetic is utilizing cutting-edge technology to deliver servo motors that are not only affordable and reliable but also superior in performance. Our servo motor range offers robust solutions to meet the needs of various industries, standing out for their precision, efficiency, and durability.
These motors are more than just a product for our customers; they form a solid foundation for developing customized solutions. Our motors provide the flexibility and core technology needed for tailored, application-specific engineering, ensuring that each customer gets the optimal performance they require.
By choosing iNetic servo motors, you’re investing in advanced, reliable technology that can power innovation and drive success in any application.

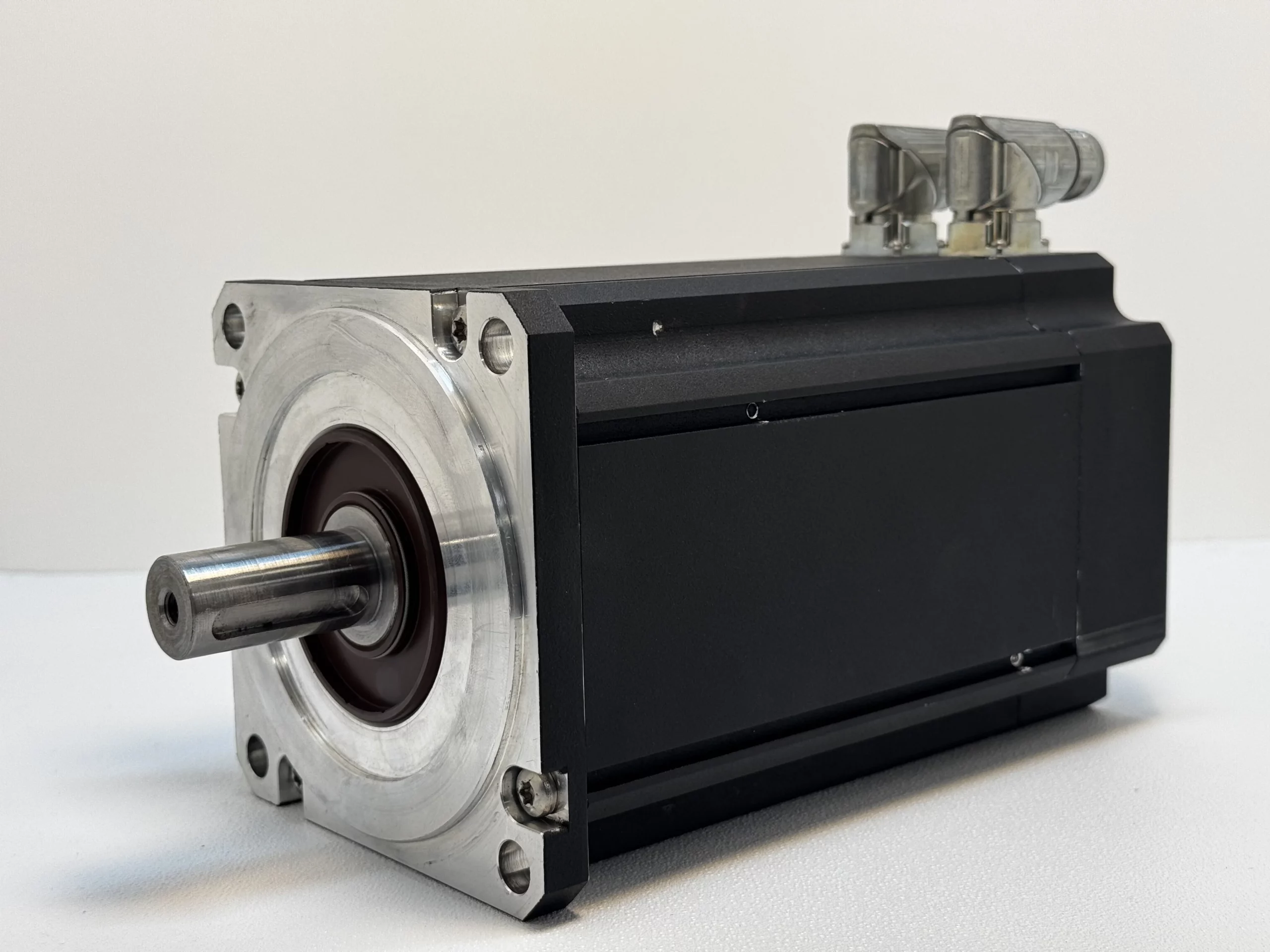

| Product | iNX Servo Motor |
| Frame Size | 60 mm – 140 mm |
| Voltage Range | 24 VDC – 565 VDC |
| Power Range | 0.1 kW – 6 kW |
| Speed Range | Upto 6000 RPM |
| Insulation Class | F (155 °C) |
| Feedback | TTL Endcoder, Absolute Encoder, Resolver |
| Protection Class | IP 65 |

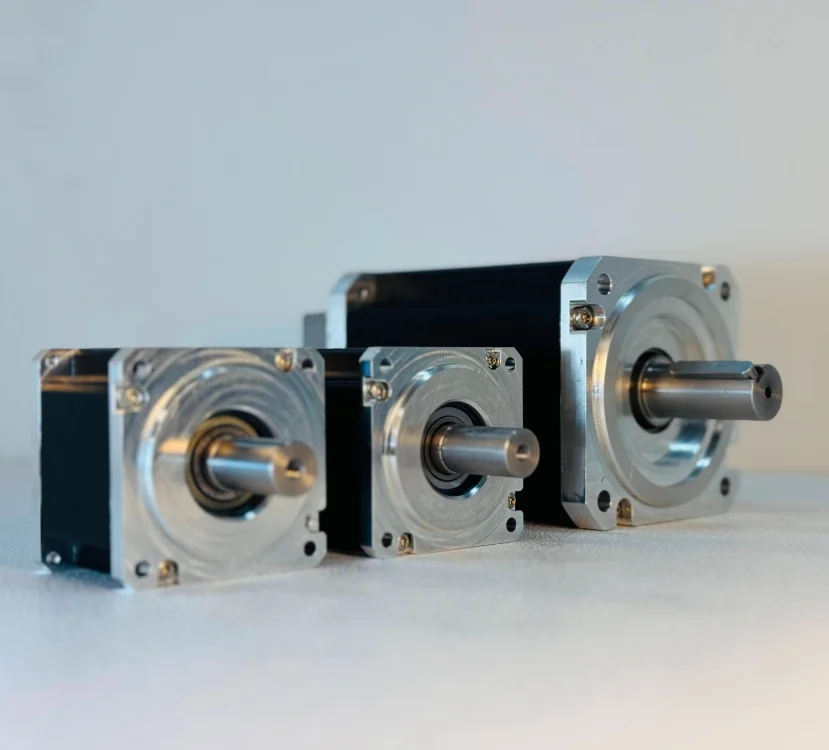

iNX Servo Motor Range Products Data
| Product No | Product Feature | Datasheet | 3D Model |
|---|---|---|---|
| 1L057X055NXXXD | Frame size: 60 mm , Double encoder, No brake | ||
| 2L085X021NXXXD | Frame size: 90 mm, Double Encoder, No Drive | ||
| 3T135X020FIIXA | Frame size: 140 mm, 200 V, resolver, with or without fan box | ||
| 3F135X015FIIXA | Frame size: 140 mm, 400 V, resolver, with or without fan box |
